FS2040C-L Siemens Controller ATC CNC Router

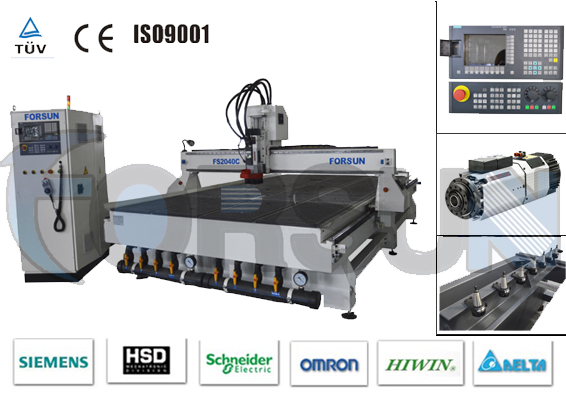

2040CNC ATC router


Germany technologie CNC Router

Applicable Industry and materials:

1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, doors and windows.

2) The wood products: computer tables, sewing machines table

3) Plate processing: plastic chemical components, PCB, inner body of car,anti bate board, , ABS

4) Decorate industry: Acrylic, PVC, MDF, artificial stone, plastic and soft metals such as copper, aluminum plate

Standard Configuration: Option item
1) Working area: 2000mm*4000mm*200mm2) Siemens controller system from Germany3) Siemens AC Servo motors from Germany

4) 9.0KW HSD air cooling spindle from Italy

5) DELTA inverter made in Taiwan

6) ATC with 8 positions in line

7) T-Slot vacuum table

8) ArtCam software,

9) 3PH 380V 50Z

10) Plywood case package

1. Germany BECKER vacuum pump
2. Dust collect system3. Oil mist cooling system
Technical Data
NO Description Parameter
1 X,Y,Z Traveling Positioning Accuracy 0.03/300mm
2 X,Y,Z Repositioning Accuracy: 0.03mm/300mm
3 Max. Rapid Travel Rate 80000mm/min
4 Max. Working Speed 45000mm/min
6 Spindle Speed 0-24000RPM
7 Command Language G Code
8 Flash Memory 15%2M
9 Collet ER32
10 X,Y Resolution <0.03mm
11 Running Environment Temperature 0 – 45 Centigrade
12 Relative Humidity 30% – 75%
13 Packing Size 3520*2280*2100mm
14 N.W. 1500KG
15 G.W. 1700KG

Machine Picutures
